Antennas for listening to the medium wave

You can read also my article about LOOP antennas for MW and SW

https://chinaradiosswl.blogspot.com/2023/06/loop-shortwave-antennas-for-swl-not-to.html

https://www.nextpcb.com/blog/am-loop-antenna

Tecsun AN-200 Tunable AM/MW Receiving Antenna

AN-200 tunable medium wave loop antenna is designed for receiving AM (MW) broadcasts. This antenna covers the frequency of medium wave broadcasting band. It enhances signal reception in places where EM1 noise or strong shielding conditions exist.

OPERATION

Connect the AN-100 medium wave annular antenna to the audio modulator, car radio or medium wave line-in socket of BCL radio. If the radio without medium wave line-in socket, the annular antenna can be placed nearby the radio and closed to the radio’s MW build-in antenna.

Set the radio at medium wave band. Then roll the tunable button on AN-100 medium wave annular antenna to receive the best frequency signal until the sound from broadcasting channel is clear and stable.

AN-100 medium wave annular antenna can perform its best function by moving to the right direction.

package list :

1 x AN-200

1 x audio cable

https://www.ebay.com/str/gardhelper

Indoor Magnetic Loop Antenna for all AM/MW receivers.

can also be used with any AM receiver without connecting to it, just get the loop antenna close to your radio and tune it to the right frequency with the 365pF Air Variable Capacitor, you can nole the noise or improve the signal by turning the loop antenna in the direction of the transmitter.

Big enough to work properly, and small enough to be portable, and best of all Made in the USA.

1. Working frequency coverage: 520-1710 KHz

2. Enhance Medium Wave receive capacity, improve Medium Wave reception, suitable for weak Medium Wave signal.

3. Easy to setup and use with the radios which has the inside ferrite Medium Wave antenna or has the external Medium Wave antenna input socket.

The ML-1 is a tunable medium wave magnetic loop antenna designed for receiving AM (medium wave) broadcasting. This antenna covers the frequency of the medium wave broadcasting band. It performs well to improve signal reception in places where EMI noise or strong shielding conditions exist.

2.Features:
(1) Loop wight: 1-5/8 inch
(2) Loop diameter :8-inch, overall Hight is 11 inches with a base of 4 x 5 inches.

(2.2) 24-inch RG316 with SMA Male connector.

(3) Working frequency coverage: 520-1710 KHz
(4) No battery or the external power supply required
(5) Dedicated tuning knob designed for the frequency tuning.
(6) Enhance Medium Wave receive capacity, suitable for weak Medium Wave signal.
(7) Easy to setup and use with the radios which has the inside ferrite Medium Wave (AM) antenna or has the external Medium Wave antenna input socket
(8) SMA male connector for SDR receivers, can also use adapter to connect to your specified connector.

3.Usage:
(1) Connect the ML-1magnetic loop antenna to your radio by connecting the SMA to your radio antenna input. If the radio without medium wave line-in socket, the annular antenna can be placed nearby the radio and closed to the radio’s MW build-in antenna and the radiation of the magnet loop will improve your reception.

(2) Set the radio at medium wave band. Then roll the tunable knob on the ML-1 magnetic loop antenna to receive the best frequency signal until the sound from broadcasting channel is clear and stable.
(3) Picking the room in your home with the less amount of Noice will have the best result.

https://www.ebay.com/str/sigma3dprinting

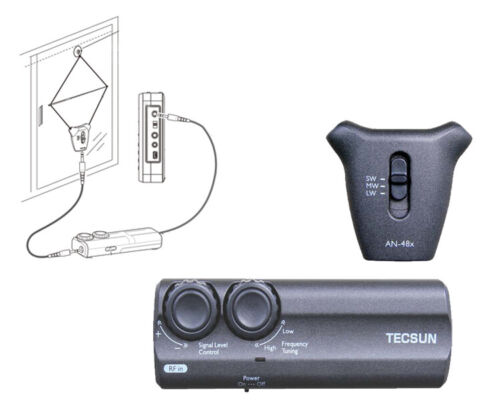

TECSUN AN-48x is an active loop antenna for enhancing shortwave (SW), medium wave (MW/AM) and longwave (LW) reception.

Unlike previous models (DE31MS, A38-LMS) available through Anon-Co, the AN-48x is supplied with adapters to connect the antenna to BNC and RCA sockets. This greatly simplifies hooking up the antenna to TECSUN receivers like S-2000 and S-8800, while it is just as easy to use with H-501, PL-990, PL-880 and the rest of the "PL"-family.

AN-48x also works with portable radios that do not have an external antenna jack!

Effective Frequency Range:

Longwave: 120 ~ 400 kHz

Medium Wave (AM): 520 ~ 1700 kHz

Shortwave: 3500 ~ 20,000 kHz

Basic Operation:

1) After connecting the antenna to the radio, tune the radio to a desired radio station.

2) Switch the antenna amplifier to the corresponding frequency band and power on the control box.

3) Adjust the frequency and signal level knobs to enhance the signal.

Shortwave Operation:

Connect AN-48x to the external SW antenna jack of your radio, if available. If not available, use the Black and Red connectors to connect the antenna with the telescopic antenna of your radio and a self-made ground wire.

Medium Wave (AM) & Longwave Operation:

Connect AN-48x to the external MW/LW antenna jack of your radio, if available. If not available, connect the control box to the included ferrite coupler and place it near the built-in MW antenna of your radio. For pocket sized radios, use the included base station to keep the ferrite coupler near the MW antenna more conveniently.

Power Source:

2 x AAA battery (not included)

Included Items:

English gift box

English user manual

Amplifier with antenna wire

Control box

TRS male - TRS male cable

TRS female - BNC male cable

TRS female - RCA male cable

TRS female - Black/Red alligator clips

Ferrite coupler

Base station to support pocket radios

Suction cup

Hanging clip

Loop extension rod

https://www.ebay.com/str/anonco

https://www.ebay.com/usr/mrgph?_trksid=p2047675.m3561.l2559

AM Ferrite Antenna for Sony Tecsun Degen Eton and other Portable Radios
530 - 1710 KHz Improves MW Reception 200mm

*** NO RECEIVER or CABLE IS INCLUDED ***

*** ONLY the RFA200 AM TUNABLE ANTENNA ***

- Frequency: 530Khz - 1710Khz
- Tunable
- Passive, No external power or battery needed
- Wireless connection to AM Radios
- Plus a low impedance output 3.5mm mono plug for 50 ohm scanners
- Improves Sensitivity and Performance of your AM Radio Receiver for AM Band Dxing!
- Very small and lightweight, perfect for traveling antenna

This AM antenna can be used in two different ways
1) you can simply attach it near your AM radio internal ferrite antenna - wireless connection
2) use a 3.5mm cable to get a low impedance output for use with 50 ohm scanners

Use tuning knob to get the maximum signal

LW version of this antenna on the link below:

https://www.ebay.com/itm/153048876261

check on YouTube

https://www.youtube.com/watch?v=uTxeKF7vUcs&t=15s

Registered - Traceable Post shipping's
Ask for combined shipping's If you also purchased any of my other items

https://www.ebay.com/str/sv2czf
